Last month, we spotted Jonas Vingegaard aboard what appeared to be a new, unreleased Cervelo S5 168澳洲5最新开奖ಌ结果﷽:at the Critérium du Dauphiné, speculating the bike was undergoing final testing ahead of the Tour de France. It seems we were correct, as the Cervelo S5's official launch has coincided with the opening wꦜeek of La Grande Boucle.

While it looks remarkably similar to the outgoing model, Cervelo reckons the new S5 is even faster than before, thanks to “evolving the front end, and going on a bit ﷺof a diet, making it an even more pot🐬ent partner for the fastest riders in the world.”

Cyclingnews' senior tech writer, Will Jones, managed to spend some time with 168澳洲5最新开奖结果:Vingegaard's new Cervelo S5 at the team hotel in Lille ahead of Stage 1, so make sure to check it out.

Many of the new design changes stem from growing trends we’ve observed in the aero bike category over the past year, the most notable proponents being the Ridley Noah Fast 3.0 and the 168澳洲5最新开💙奖结果:Factor prototype ridden by Jake Stewart. That's not to say the outgoing S5 is obsolete by any stretch; after all, it came out 168澳洲5最新开奖结果:on top in our wind tunnel testing at zero ya🦹w, but Cervelo claims the new model is six watts faster than the outgoing♋ version.

A faster front end

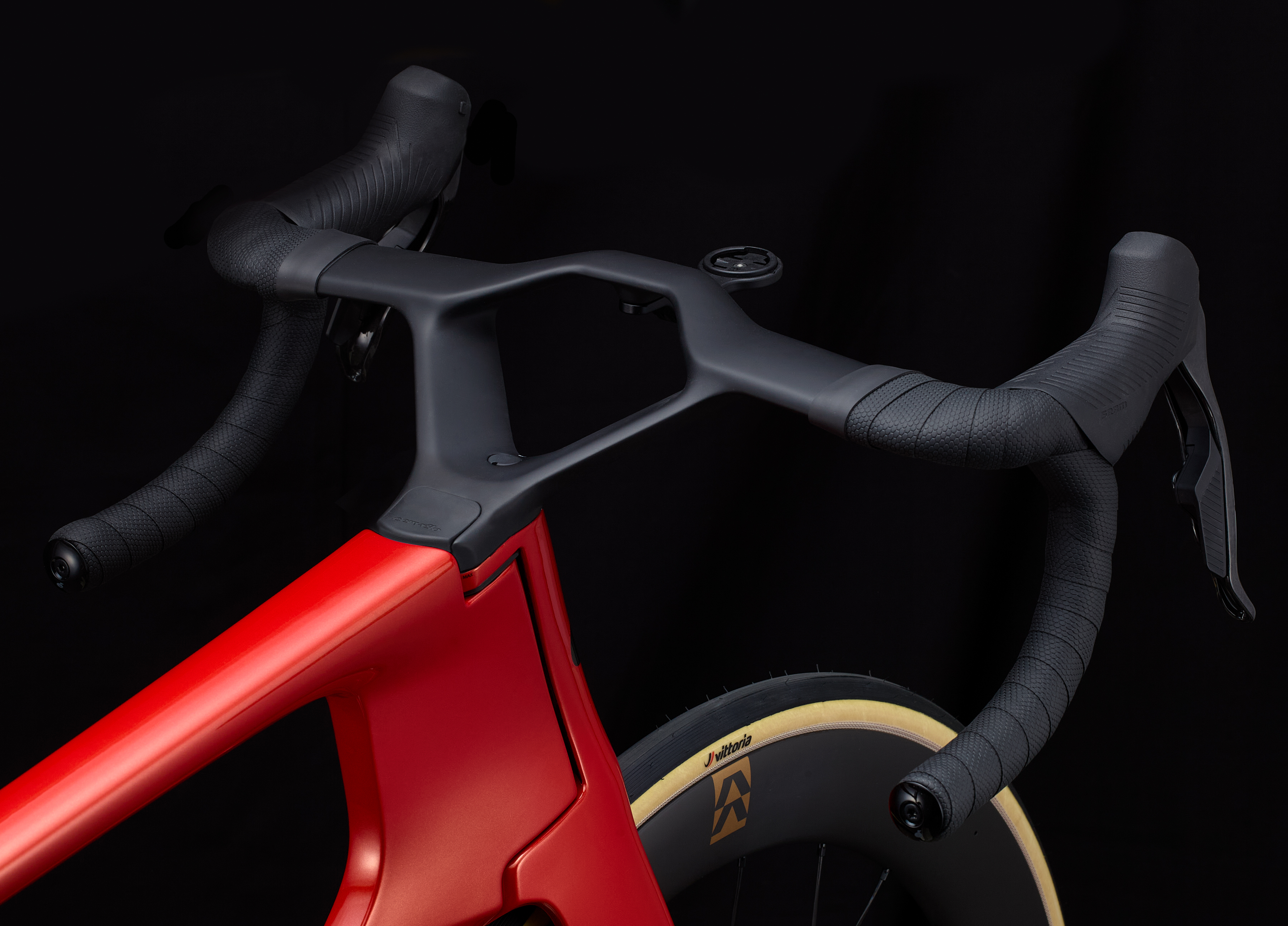

The most significant tweaks are in the form of a subtly redesigned front end and a proprietary one-piece handlebar configuration, designed to function as a system, along with a notably deeper head tube and fork legs. While the iconic two-piece V-stem remains, the n🎶ew 'HB19' handlebar was inspired by the HB16 bar/stem configuration seen on the Aspero 5, which utilises an aero wing-s𒁏haped top section that extends beyond the stem clamp.

The HB19 employs Cervelo's new 'Plus-Four' concept, which makes the hoods 4cm narrower than the drops. This new arrangement offers greater aerodynamic benefits for the rider in the aero position and is said to provide enhanced control in the drops during sprinting and descending situations – all sizes are in line with the 168澳洲5最新开奖结果:UCI's new handlebar regulations.

Other notable features include a new front brake mount, a h💦idden seatpost wedge, a custom UDH mount, and lightweight, more aerodynamic dropouts.

As a result of these alterations, Cervelo claims that the new S5 is 6.3 watts faster than its predecessor. These gains, however, don't stem entirely from the front end but also from the integration of asymmetric profiling carried out on the seat tube and rear wheel.

According to the Canada-based compan꧟y, the new Cervelo S5 is, on average, at least five watts faster than bikes𝄹 from its rivals.

Geometry

All of the tweaks have had minimal impact on the bike's geometry and rider fit, which remains largely unchanged across the six-size model range (48 to 61cm). In size medium, stack and reach are pegged at 542mm and 384mm, respectively.

The head- and seat tube angles remain at a parallel 73 degrees, while the front-center figure has increased by 0.5mm to maintain the ideal trail – this is in line witܫh wider and lඣarger contemporary tyre sizes (29mm and above). The chainstays measure 405mm.

The🅘 most notable changes are a reduced standover height compared to the previous model – and the BB height, which has been lowered by 2cm across all sizes due to the move to shorter cranks and larger tyres.

Mass reduction

One of the goals for the new S5, Cervelo says, was to reduce the overall weight of the bike by at least 80g without affecting stiffness and aerodynamics. While the new frame's deeper chord length airfoils on the head tube and fork have resulted in a 24g weight penalty over the outgoing S5, (1,006g/465g vs 1,035g/412g), the company managed to trim some lard from the seatpost and HB19 one-piece bar/stem arrangement for a total saving of 124ಌg.

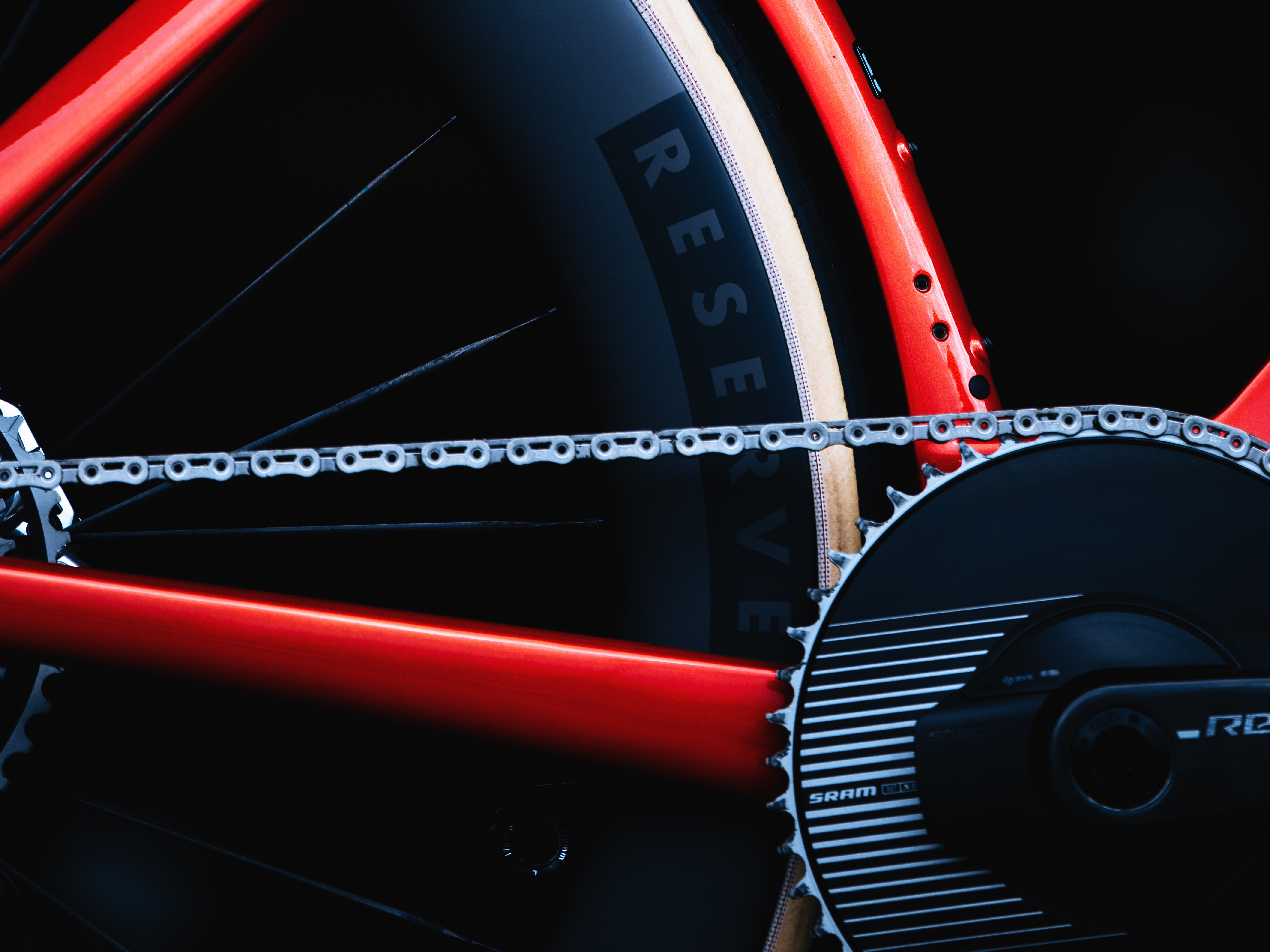

New Reserve 57/64 wheel system

Co-developed between Cervelo and Reserve, t൲he new 57/64 wheels were designed to work with the S5's asymmetric seat tube profiling, with the 🌜overall goal of creating a faster wheel system at the same weight as the outgoing 52/63.

The slight increase in depth has resulted in a claimed three-watt improvement, particularly at the front, where there's greater susceptibility to crosswinds. The rear wheel's profile was designed specifica♎lly for the asymmetric seat tube of the S5, featuring an added spoke offset for better pow✅er transfer and strength.

Both wheels are optimised for 29mm t🔯yres, with cross-sections that create a cambered airfoil for improved airflow in high-yaw scenarios.

Pricing and model range

As expected, the new Cervelo S5 isn't cheap, but there is at least some variety in the range, including a frameset option. The range is available in three distinc⛄t colourways: Five Black, Carnelian Red, and Lithium White, each of which is matched to particular groupsets.

The range is spearheaded b🌳y the SRAM Red AXS build (US$14,250 / £12,5൲00 / €13,999) and Shimano Dura-Ace Di2 build (US$14,100 / £12,000 / €13,999) – there's also a 1x-specific SRAM Red XPLR AXS 1 option at US$14,250 / £12,000 / €13,999.

The next tier down is SRAꦦ𝓰M Force AXS and Shimano Ultegra Di2, both priced at US$9,950 / £9,200 / €9,999. A frameset will set you back US$6,500 / £5,400 / €5,999.

All models come equipped w𓃲ith power meters as standard. SRAM models utilise Quar🌟q spider-based units, while Shimano bikes feature dual-sided 4iiii Precision Pro Gen3+ power meters.
